Jian-Long Hao, Xiao-Liang Xie, Gui-Bin Bian, Zeng-Guang Hou and Xiao-Hu Zhou, "Development and Evaluation of a 7-DOF Haptic Interface," IEEE/CAA J. Autom. Sinica, vol. 5, no. 1, pp. 261-269, Jan. 2018. doi: 10.1109/JAS.2017.7510769
Citation: Jian-Long Hao, Xiao-Liang Xie, Gui-Bin Bian, Zeng-Guang Hou and Xiao-Hu Zhou, "Development and Evaluation of a 7-DOF Haptic Interface," IEEE/CAA J. Autom. Sinica, vol. 5, no. 1, pp. 261-269, Jan. 2018. doi: 10.1109/JAS.2017.7510769

Development and Evaluation of a 7-DOF Haptic Interface

doi: 10.1109/JAS.2017.7510769
Funds:

the National Natural Science Foundation (NNSF) of China 61533016

the National Natural Science Foundation (NNSF) of China 61533016, U1613210

the National High-tech Research and Development Program (863 Program) of China 2015AA042306

the Beijing Natural Science Foundation 4161001

More Information

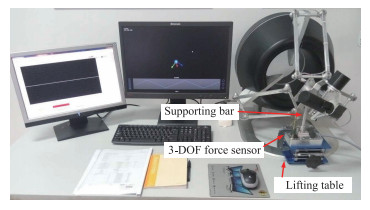

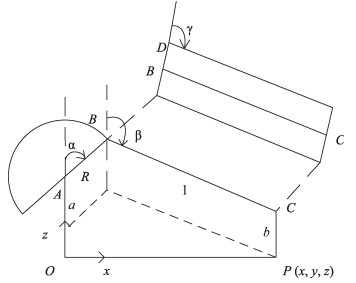

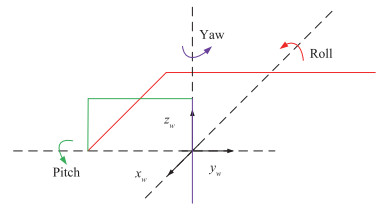

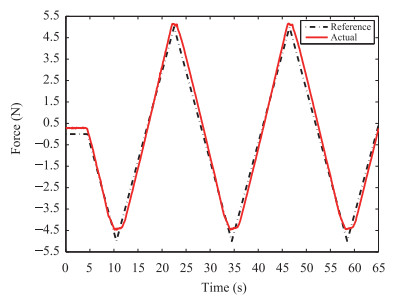

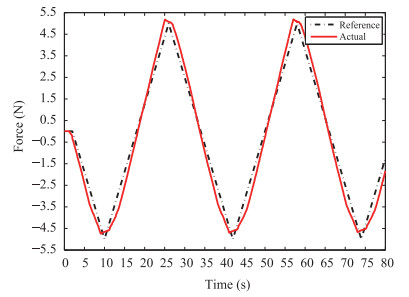

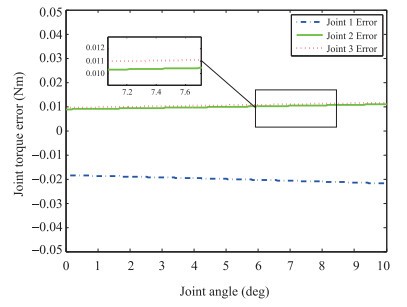

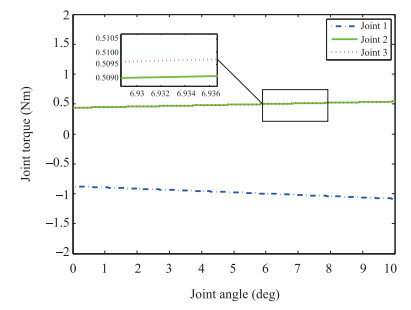

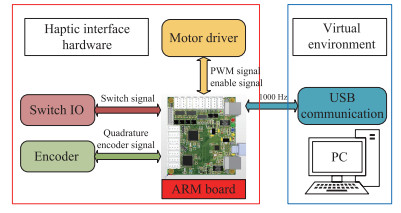

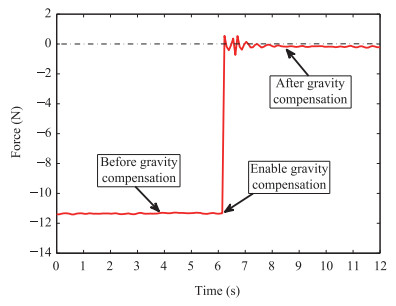

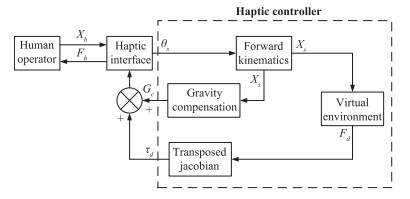

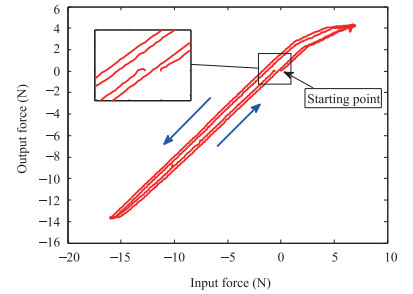

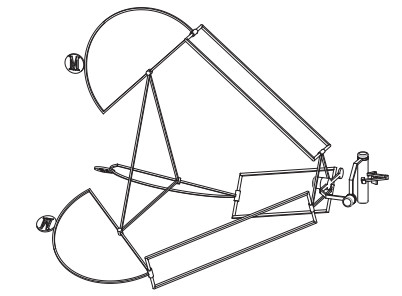

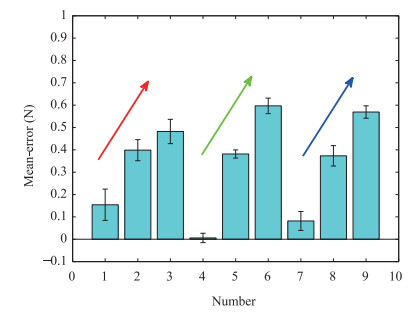

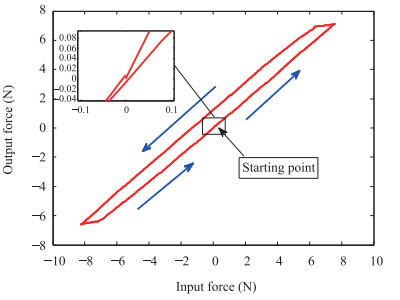

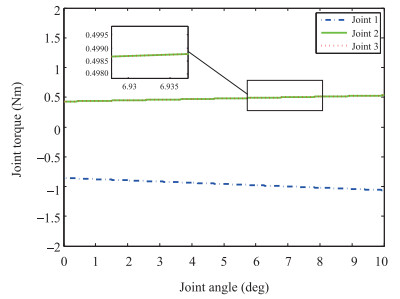

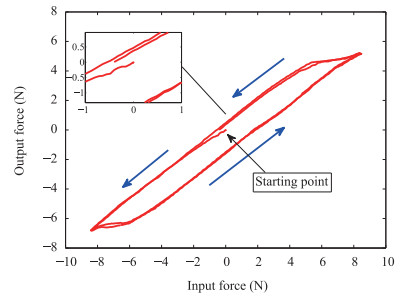

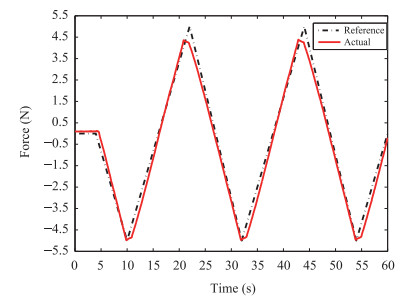

  • With the development of human robot interaction technologies, haptic interfaces are widely used for 3D applications to provide the sense of touch. These interfaces have been utilized in medical simulation, virtual assembly and remote manipulation tasks. However, haptic interface design and control are still critical problems to reproduce the highly sensitive touch sense of humans. This paper presents the development and evaluation of a 7-DOF (degree of freedom) haptic interface based on the modified delta mechanism. Firstly, both kinematics and dynamics of the modified mechanism are analyzed and presented. A novel gravity compensation algorithm based on the physical model is proposed and validated in simulation. A haptic controller is proposed based on the forward kinematics and the gravity compensation algorithm. To evaluate the control performance of the haptic interface, a prototype has been implemented. Three kinds of experiments:gravity compensation, static response and force tracking are performed respectively. The experimental results show that the mean error of the gravity compensation is less than 0.7 N and the maximum continuous force along the axis can be up to 6 N. This demonstrates the good performance of the proposed haptic interface.



  • loading
  • [1]
    C. R. Carignan and K. R. Cleary, "Closed-loop force control for haptic simulation of virtual environments, " Haptics-e, vol. 1, no. 2, pp. 1-14, Jan. 2000. http://www.mendeley.com/catalog/closedloop-force-control-haptic-simulation-virtual-environments/
    [2]
    3D Systems, USA. [Online]. Available: http://www.geomagic.com/en/products-landing-pages/haptic
    [3]
    T. H. Massie and J. K. Salisbury, "The phantom haptic interface: A device for probing virtual objects, " in ASME Winter Annual Meeting, Symposium on Haptic Interfaces for Virtual Environment and Teleoperator Systems, vol. 55, pp. 1-6, Jan. 1994. doi: 10.1109/HAPTICS.2008.4479926
    [4]
    Force Dimension Company, Switzerland. [Online]. Available: www.forcedimension.com
    [5]
    S. Grange, F. Conti, P. Helmer, P. Rouiller, and C. Baur, "The delta haptic device, " 2001. http://www.mendeley.com/catalog/delta-haptic-device/
    [6]
    A. M. Tahmasebi, B. Taati, F. Mobasser, and K. Hashtrudi-Zaad, "Dynamic parameter identification and analysis of a PHANToM haptic device, " in Proc. 2005 IEEE Conference on Control Applications (CCA), Toronto, Canada, 2005, pp. 1251-1256. http://ieeexplore.ieee.org/xpls/icp.jsp?arnumber=1507303
    [7]
    M. C. Çavuşoǧlu, D. Feygin, and F. Tendick, "A critical study of the mechanical and electrical properties of the phantom haptic interface and improvements for high performance control, " Pres. : Teleop. Virt. Environ., vol. 11, no. 6, pp. 555-568, Dec. 2002. http://ieeexplore.ieee.org/xpl/articleDetails.jsp?arnumber=6790397
    [8]
    M. A. Ergin, A. C. Satici, and V. Patoglu, "Design optimization, impedance control and characterization of a modified delta robot, " in Proc. 2011 IEEE International Conference on Mechatronics (ICM), Istanbul, Turkey, 2011, pp. 737-742. http://ieeexplore.ieee.org/document/5971212/
    [9]
    W. K. Yoon, T. Suehiro, Y. Tsumaki, and M. Uchiyama, "Stiffness analysis and design of a compact modified delta parallel mechanism, " Robotica, vol. 22, no. 4, pp. 463-475, Aug. 2004. http://journals.cambridge.org/abstract_S0263574704000050
    [10]
    H. P. Liu, J. Qin, F. C. Sun, and D. Guo, "Extreme kernel sparse learning for tactile object recognition, " IEEE Trans. Cybernet., 2016, doi: 10.1109/TCYB.2016.2614809.
    [11]
    H. P. Liu, F. C. Sun, D. Guo, B. Fang, and Z. C. Peng, "Structured output-associated dictionary learning for haptic understanding, " IEEE Trans. Syst. Man Cybernet. : Syst., vol. 47, no. 7, pp. 1564-1574, Jul. 2017, doi: 10.1109/TSMC.2016.2635141.
    [12]
    H. P. Liu, D. Guo, and F. C. Sun, "Object recognition using tactile measurements: Kernel sparse coding methods, " IEEE Trans. Instrum. Meas., vol. 65, no. 3, pp. 656-665, Mar. 2016. http://ieeexplore.ieee.org/document/7393812/
    [13]
    C. F. Adetu, C. A. Moor, and R. G. Roberts, "Dynamic modeling and control of the OMEGA-3 parallel manipulator, " in Proc. IEEE International Conference on Systems, Man and Cybernetics (SMC), San Antonio, TX, USA, 2009, pp. 3599-3604.
    [14]
    A. Tobergte and P. Helmer, "A disturbance observer for the sigma. 7 haptic device, " in Proc. 2013 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Tokyo, Japan, 2013, pp. 4964-4969.
    [15]
    H. M. Wang, D. M. Wu, Z. J. Du, Z. Y. Yan, and C. J. Li, "Design of a novel serial and parallel force feedback master manipulator, " in Proc. 2010 IEEE Conference on Robotics and Biomimetics (ROBIO), Tianjin, China, 2010, pp. 1710-1715.
    [16]
    Y. Li, Z. Y. Yan, H. M. Wang, Z. J. Du, and Y. C. Zhang, "Design and optimization of a haptic manipulator using series-parallel mechanism, " in Proc. IEEE International Conference on Mechatronics and Automation (ICMA), Chengdu, China, 2012, pp. 2140-2145. http://ieeexplore.ieee.org/document/6285674/
    [17]
    B. Hannaford and A. M. Okamura, "Chapter 30: Haptics, " in Springer Handbook of Robotics, B. Siciliano and O. Khatib, Eds. Berlin Heidelberg, Germany: Springer, 2008, pp. 719-739.
    [18]
    J. L. Hao, G. B. Bian, X. L. Xie, Z. G. Hou, and H. N. Yu, "Kinematic and static analysis of a cable-driven 3-DOF delta parallel mechanism for haptic manipulators, " in Proc. 34th Chinese Control Conference (CCC), Hangzhou, China, 2015, pp. 4373-4378. http://ieeexplore.ieee.org/document/7260317/
    [19]
    J. L. Hao, X. L. Xie, G. B. Bian, Z. Q. Feng, Z. J. Gao, Z. G. Hou, H. N. Yu, and L. Vladareanu, "Dynamic modeling and control simulation of a modified delta manipulator, " in Proc. 2015 IEEE International Conference on Information and Automation, Lijiang, China, 2015, pp. 1573-1578.
    [20]
    J. J. Gil and E. Sánchez, "Control algorithms for haptic interaction and modifying the dynamical behavior of the interface, " in Proc. 2nd International Conference on Enactive Interfaces, Genoa, Italy, 2005.
    [21]
    N. Diolaiti, G. Niemeyer, F. Barbagli, and J. K. Salisbury, "Stability of haptic rendering: Discretization, quantization, time delay, and Coulomb effects, " IEEE Trans. Rob., vol. 22, no. 2, pp. 256-268, Apr. 2006. http://dl.acm.org/citation.cfm?id=2211871
    [22]
    E. Samur, L. Flaction, and H. Bleuler, "Design and evaluation of a novel haptic interface for endoscopic simulation, " IEEE Trans. Hapt., vol. 5, no. 4, pp. 301-311, 2012. doi: 10.1109/TOH.2011.70
    [23]
    J. J. Abbott and A. M. Okamura, "Effects of position quantization and sampling rate on virtual-wall passivity, " IEEE Trans. Robot., vol. 21, no. 5, pp. 952-964, Oct. 2005. http://ieeexplore.ieee.org/document/1512352/
