Xiaoyuan Wang, Chenxi Jin, Xiaotao Min, Dongsheng Yu and Herbert Ho Ching Iu, "An Exponential Chaotic Oscillator Design and Its Dynamic Analysis," IEEE/CAA J. Autom. Sinica, vol. 7, no. 4, pp. 1081-1086, July 2020. doi: 10.1109/JAS.2020.1003252
Citation: Xiaoyuan Wang, Chenxi Jin, Xiaotao Min, Dongsheng Yu and Herbert Ho Ching Iu, "An Exponential Chaotic Oscillator Design and Its Dynamic Analysis," IEEE/CAA J. Autom. Sinica, vol. 7, no. 4, pp. 1081-1086, July 2020. doi: 10.1109/JAS.2020.1003252

An Exponential Chaotic Oscillator Design and Its Dynamic Analysis

doi: 10.1109/JAS.2020.1003252
Funds:  This work was supported by the National Natural Science Foundation of China (61871429), and the Natural Science Foundation of Zhejiang Province (LY18F010012)
More Information

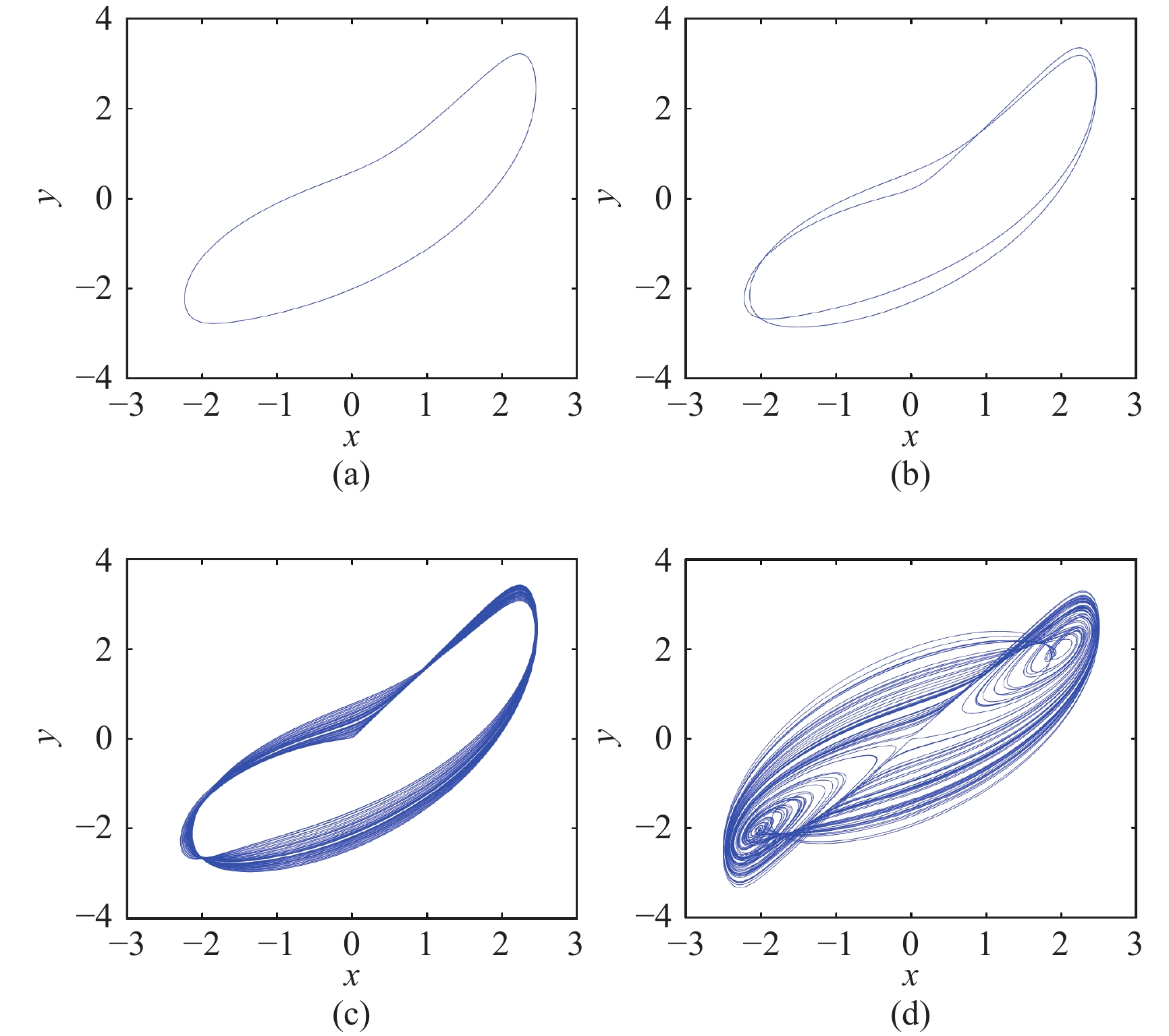

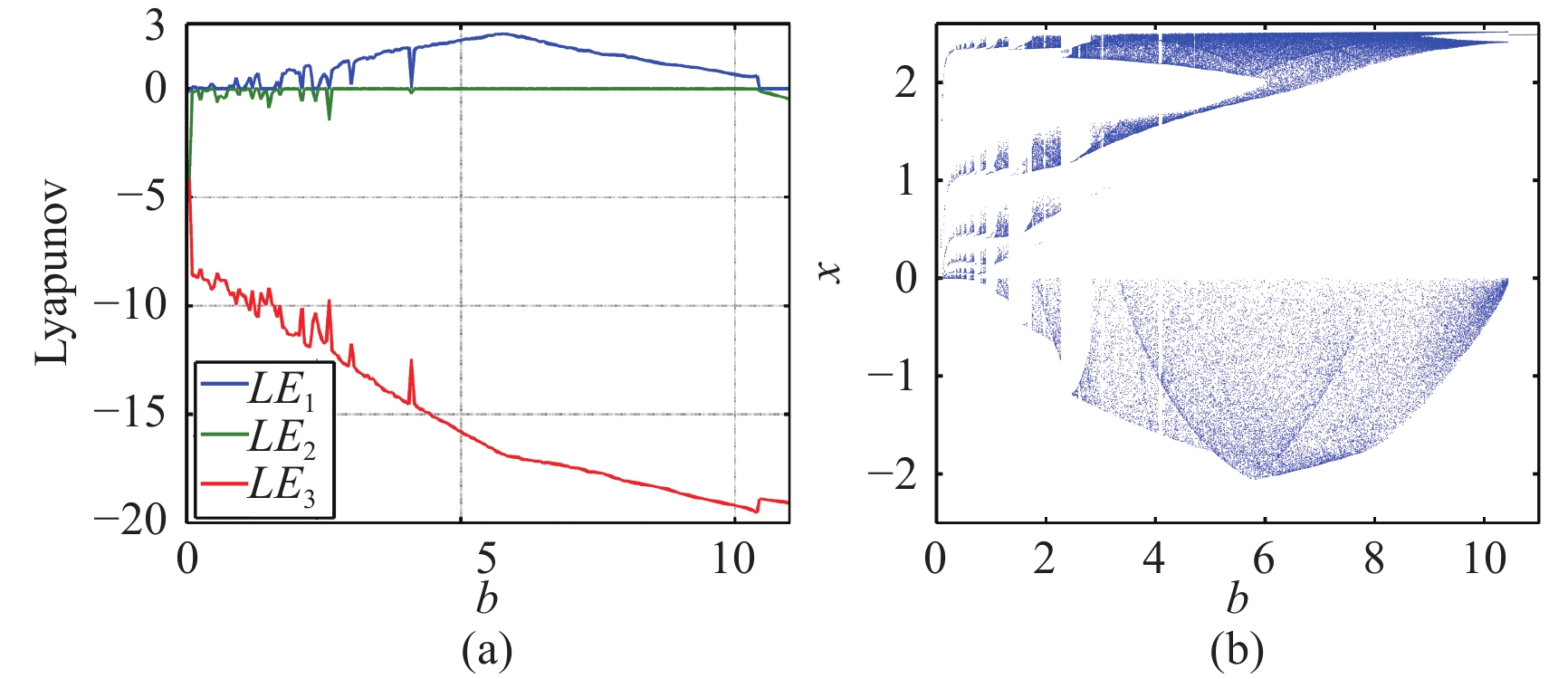

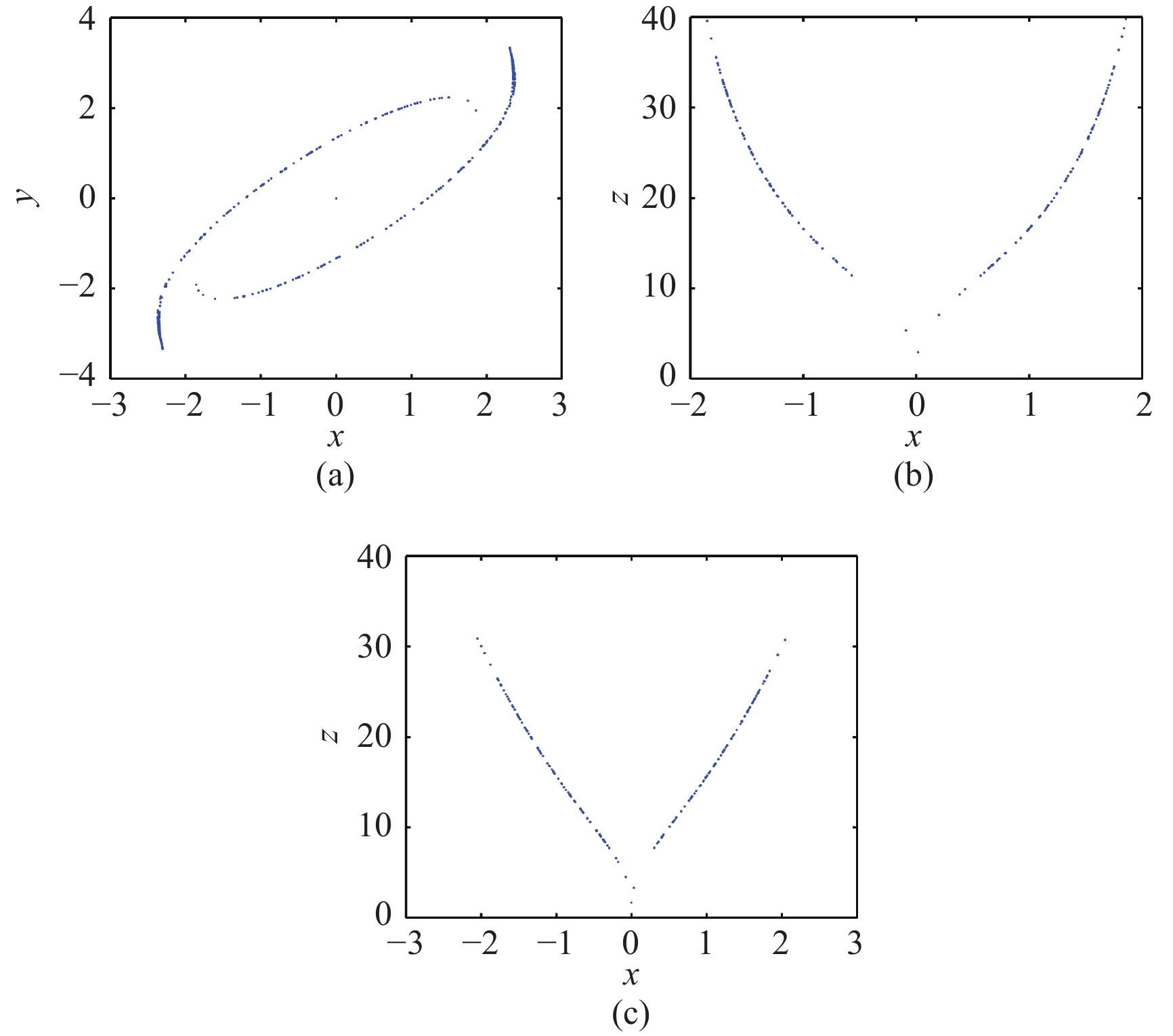

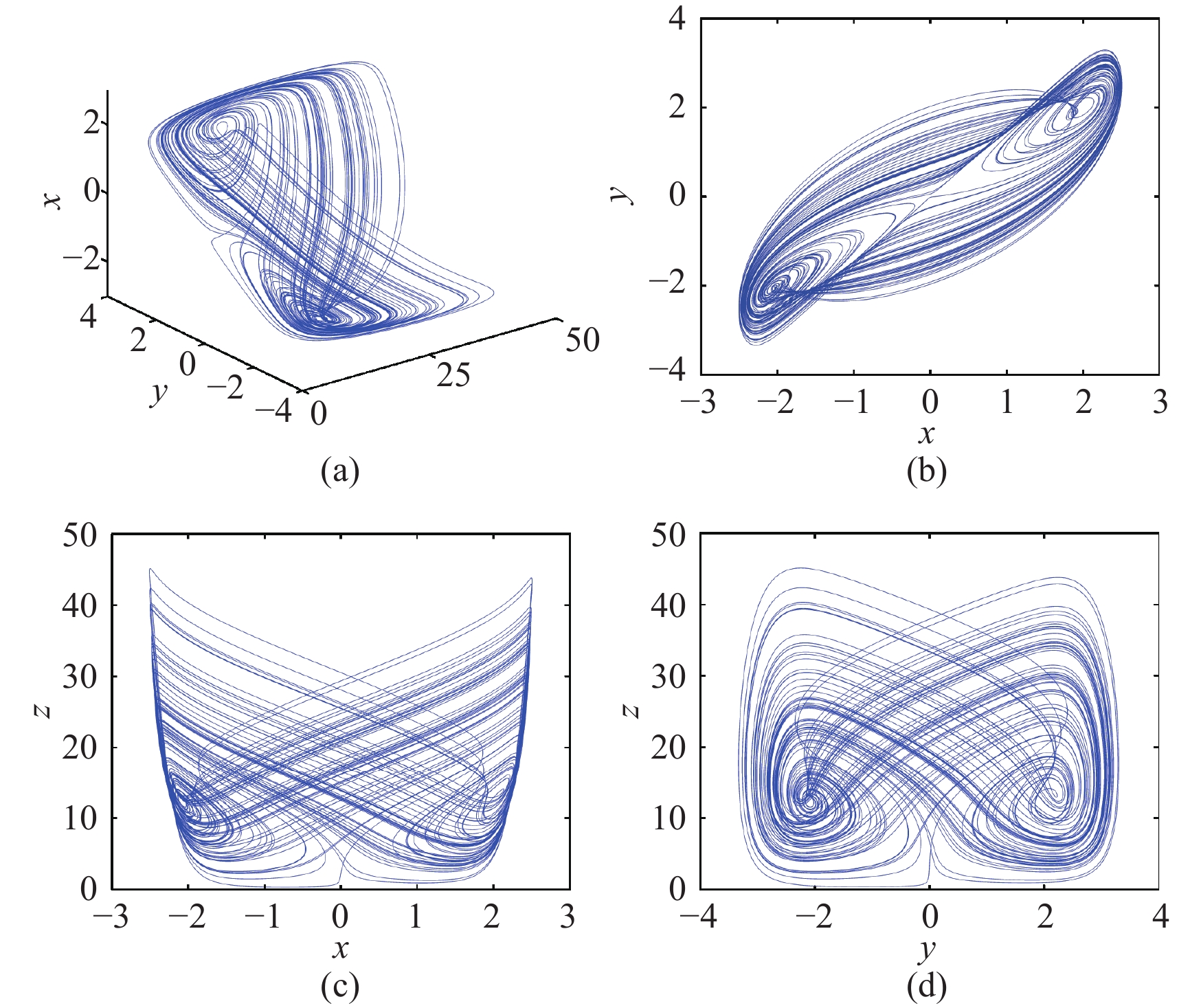

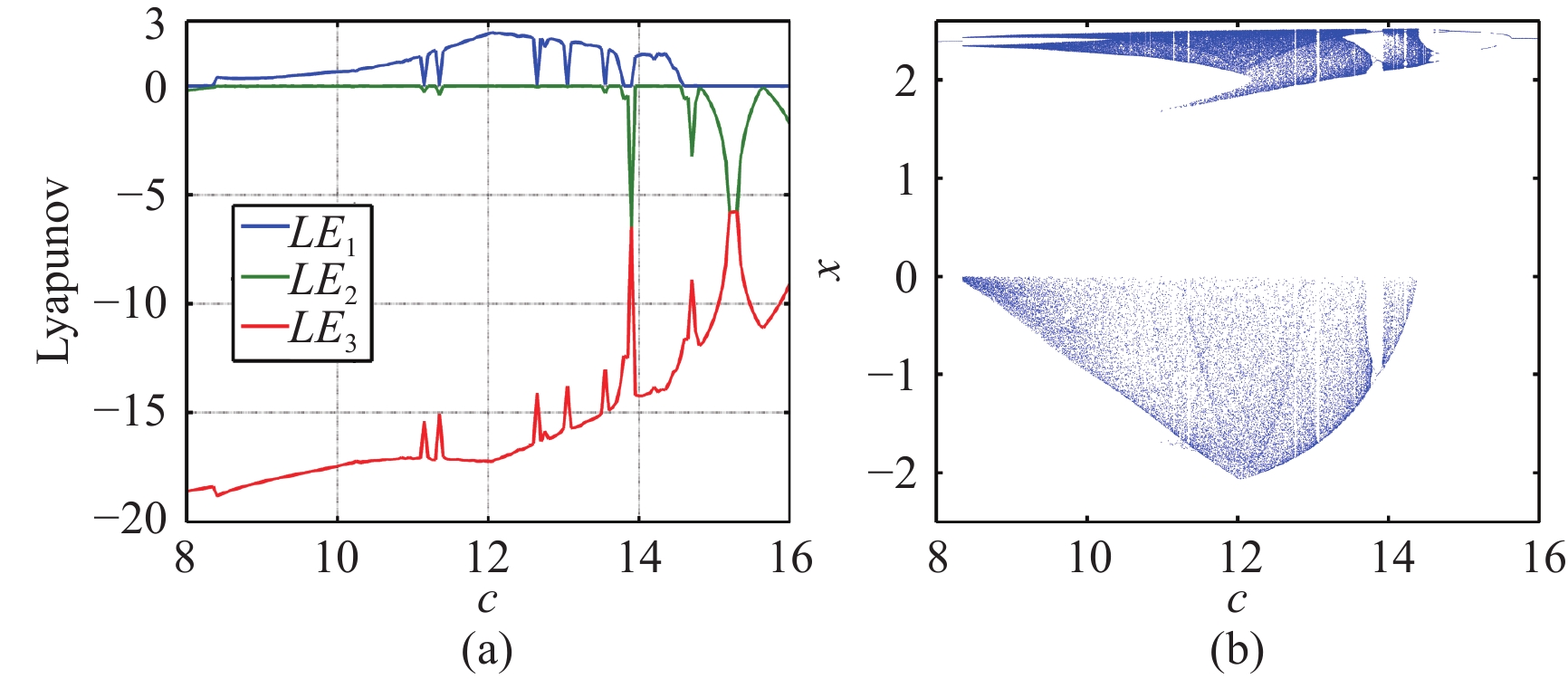

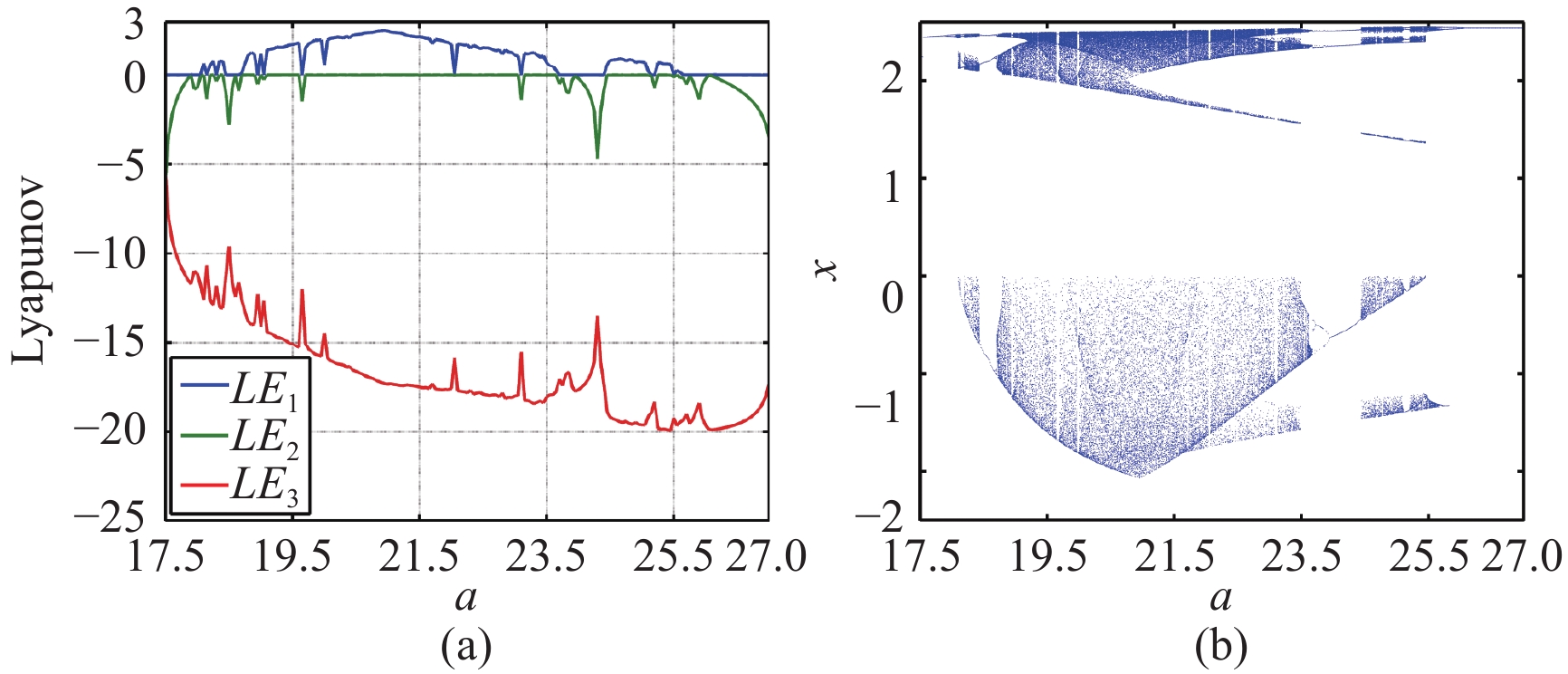

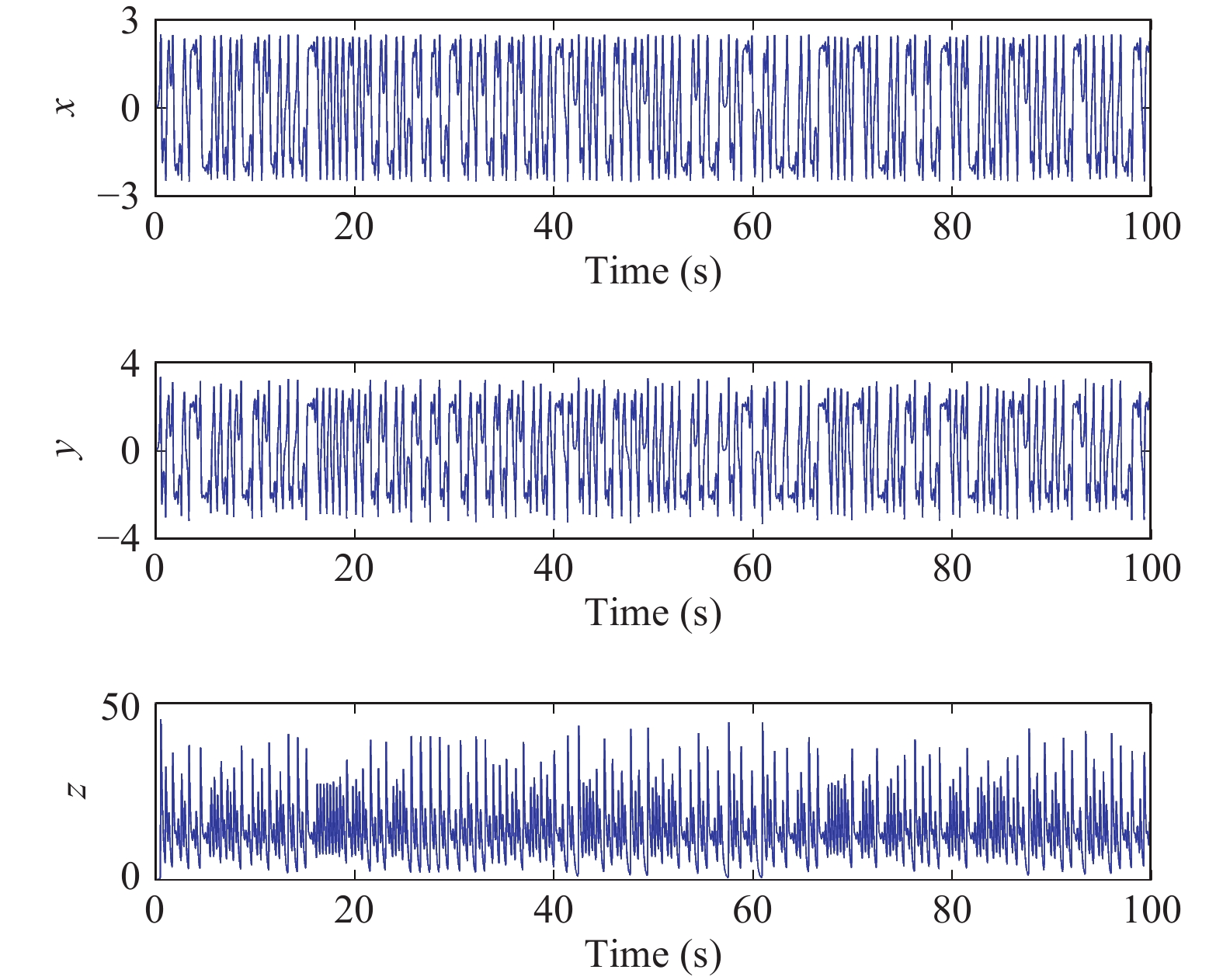

  • After years of development, chaotic circuits have possessed many different mathematic forms and multiple realization methods. However, in most of the existing chaotic systems, the nonlinear units are composed of the product terms. In this paper, in order to obtain a chaotic oscillator with higher nonlinearity and complexity to meet the needs of utilization, we discuss a novel chaotic system whose nonlinear term is realized by an exponential term. The new exponential chaotic oscillator is constructed by adding an exponential term to the classical Lü system. To further investigate the dynamic characteristics of the oscillator, classical theoretical analyses have been performed, such as phase diagrams, equilibrium points, stabilities of the system, Poincaré mappings, Lyapunov exponent spectrums, and bifurcation diagrams. Then through the National Institute of Standards and Technology (NIST) statistical test, it is proved that the chaotic sequence generated by the exponential chaotic oscillator is more random than that produced by the Lü system. In order to further verify the practicability of this chaotic oscillator, by applying the improved modular design method, the system equivalent circuit has been realized and proved by the Multisim simulation. The theoretical analysis and the Multisim simulation results are in good agreement.



  • loading
  • [1]
    E. N. Lorenz, “Deterministic nonperodic flows,” Atoms. Sci., vol. 20, no. 2, pp. 130–141, Mar. 1963. doi: 10.1175/1520-0469(1963)020<0130:DNF>2.0.CO;2
    [2]
    G. Chen and T. Ueta, “Yet another chaotic attractor,” Int. J. Bifurcation Chaos, vol. 9, no. 7, pp. 1465–1466, Jul. 1999. doi: 10.1142/S0218127499001024
    [3]
    J. Lü and G. Chen, “A new chaotic attractor coined,” Int. J. Bifurcation Chaos, vol. 12, no. 3, pp. 659–661, Mar. 2002. doi: 10.1142/S0218127402004620
    [4]
    L. Xiong, S. Zhang, Y. Zeng, and B. Liu, “Dynamics of a new composite four-Scroll chaotic system,” Chinese J. Phys., vol. 56, no. 5, pp. 2381–2394, Oct. 2018. doi: 10.1016/j.cjph.2018.06.022
    [5]
    Y. Li, X. Huang, Y Song, and J. Lin, “A new fourth-order memristive chaotic system and its generation,” Int. J. Bifurcation Chaos, vol. 25, no. 11, pp. 1550151, Oct. 2015. doi: 10.1142/S0218127415501515
    [6]
    Q. Lai, C. Chen, X. Zhao, J. Kengne, and C. Volos, “Constructing chaotic system with multiple coexisting attractors,” IEEE Access, vol. 7, pp. 24051–24056, Mar. 2019. doi: 10.1109/ACCESS.2019.2900367
    [7]
    S. Mobayen, C. K. Volos, S. Kacar, and U. Cavusoglu, “New class of chaotic systems with equilibrium points like a three-leaved clover,” Nonlinear Dyn., vol. 91, no. 2, pp. 939–956, Jan. 2018. doi: 10.1007/s11071-017-3920-4
    [8]
    X. Wang, X. Min, J. Yu, Y. Shen, G. Wang, and H. H. C. Iu, “Realization of a novel logarithmic chaotic system and its characteristic analysis,” Int. J. Bifurcation Chaos, vol. 29, no. 2, pp. 1930004, Feb. 2019. doi: 10.1142/S0218127419300040
    [9]
    K. B. Deng, R. X. Wang, C. L. Li, and Y. Q. Fan, “Tracking control for a ten-ring chaotic system with an exponential nonlinear term,” Optik, vol. 130, pp. 576–583, Feb. 2017. doi: 10.1016/j.ijleo.2016.10.088
    [10]
    V. T. Pham, S. Vaidyanathan, C. K. Volos, and S. Jafari, “Hidden attractors in a chaotic system with an exponential nonlinear term,” Eur. Phys. J-Spec. Top., vol. 224, no. 8, pp. 1507–1517, Jul. 2015. doi: 10.1140/epjst/e2015-02476-9
    [11]
    Q, Gan, S. Yu, C. Li, et al., “Design and ARM-embedded implementation of a chaotic map-based multicast scheme for multiuser speech wireless communication,” Int. J. Circuit Theory and Applications, vol. 45, no. 11, pp. 1849–1872, Nov. 2017. doi: 10.1002/cta.2300
    [12]
    B. Naderi and K. Kheiri, “Exponential synchronization of chaotic system and application in secure communication,” Optik, vol. 127, no. 5, pp. 2407–2412, Mar. 2016. doi: 10.1016/j.ijleo.2015.11.175
    [13]
    C. E. C. Souza, D. P. B. Chaves, and C. Pimentel, “Digital communication systems based on three-dimensional chaotic attractors,” IEEE Access, vol. 7, pp. 10523–10532, January. 2019. doi: 10.1109/ACCESS.2019.2891712
    [14]
    C. Nwachioma, J. Humberto Pérez-Cruz, A. Jiménez, M. Ezuma, and R. Rivera-Blas, “A new chaotic oscillator-properties, analog implementation, and secure communication application,” IEEE Access, vol. 7, pp. 7510–7521, Jan. 2019. doi: 10.1109/ACCESS.2018.2889964
    [15]
    C. H. Yang and S. J. Huang, “Secure color image encryption algorithm based on chaotic signals and its FPGA realization,” Int. J. Circuit Theory and Applications, vol. 46, no. 12, pp. 2444–2461, Dec. 2018. doi: 10.1002/cta.2572
    [16]
    Z. Wu, X. Zhang, and X. Zhong, “Generalized chaos synchronization circuit simulation and asymmetric image encryption,” IEEE Access, vol. 7, pp. 37989–38008, March. 2019. doi: 10.1109/ACCESS.2019.2906770
    [17]
    J. Guo, D. Riyono, and H. Prasetyo, “Improved beta chaotic image encryption for multiple secret sharing,” IEEE Access, vol. 6, pp. 46297–46321, Aug. 2018. doi: 10.1109/ACCESS.2018.2863021
    [18]
    C. Zhu and K. Sun, “Cryptanalyzing and improving a novel color image encryption algorithm using rt-enhanced chaotic tent maps,” IEEE Access, vol. 6, pp. 18759–18770, Mar. 2018. doi: 10.1109/ACCESS.2018.2817600
    [19]
    M. Alcin, I. Koyuncu, M. Tuna, M. Varan, and I. Pehlivan, “A novel high speed artificial neural network-based chaotic true random number generator on field programmable gate array,” Int. J. Circuit Theory and Applications, vol. 47, no. 3, pp. 365–378, Mar. 2019. doi: 10.1002/cta.2581
    [20]
    B. Karakaya, V. Çelik, and A. Gülten, “Chaotic cellular neural network‐based true random number generator,” Int. J. Circuit Theory and Applications, vol. 45, no. 11, pp. 1885–1897, Nov. 2017.

Catalog

    通讯作者: 陈斌, bchen63@163.com
    • 1.

      沈阳化工大学材料科学与工程学院 沈阳 110142

    1. 本站搜索
    2. 百度学术搜索
    3. 万方数据库搜索
    4. CNKI搜索

    Figures(10)  / Tables(1)

    Article Metrics

    Article views (708) PDF downloads(30) Cited by()

    Highlights

    • Exponential nonlinear term
      The exponential term in this system makes it different from the original chaotic system. This exponentially nonlinear term may make the new chaotic system have better performance. And the effectiveness of this exponential chaotic system has been proved by various theoretical analyses.
    • NIST test
      The exponential chaotic system passed all fifteen tests, but the Lü system passed only fourteen of them. Also the exponential chaotic system has 9 tests with P-values greater than the Lü system in all 15 tests. It shows that the sequence generated by the exponential chaotic system is more random than that produced by the Lü system.
    • Circuit

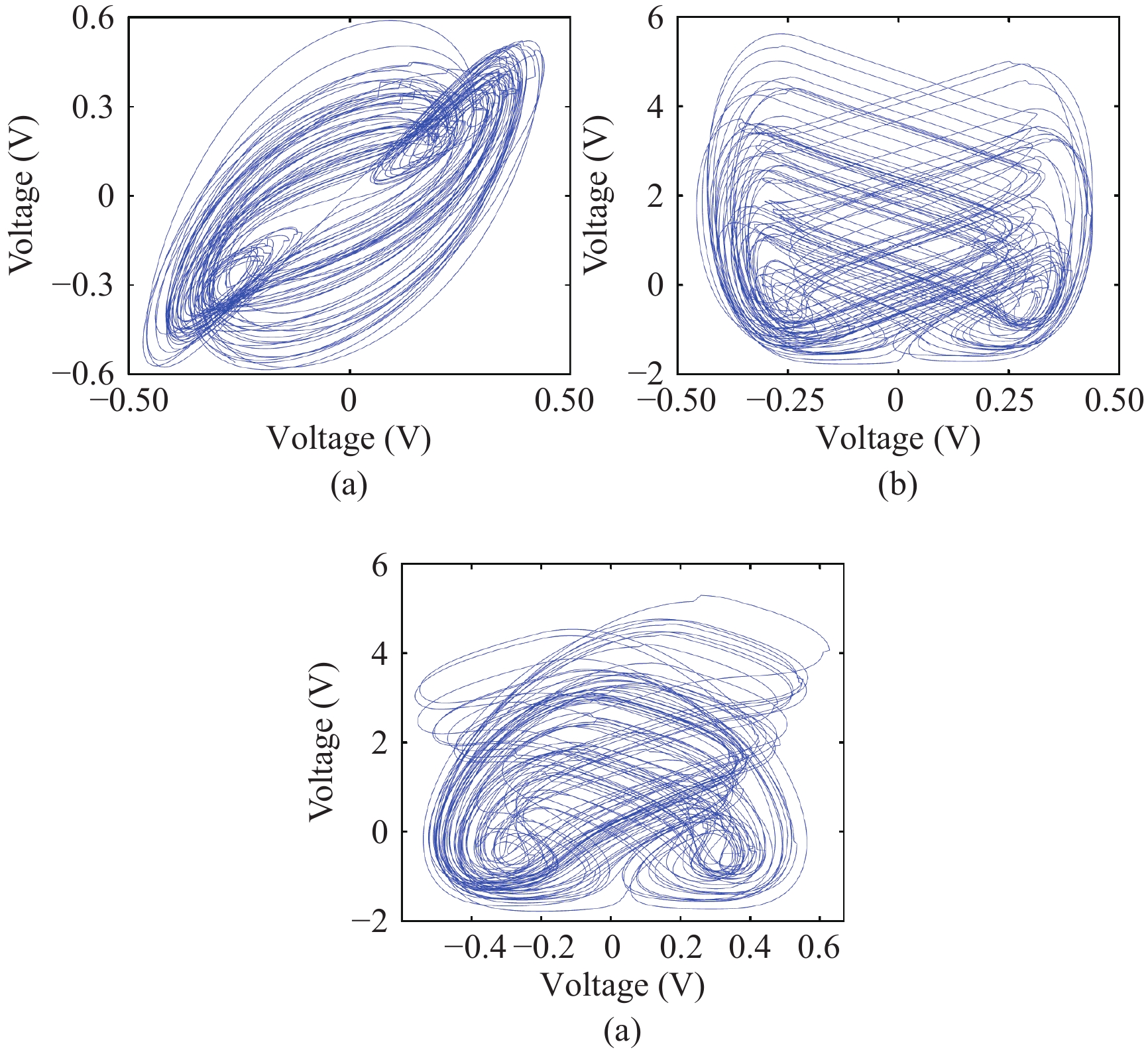

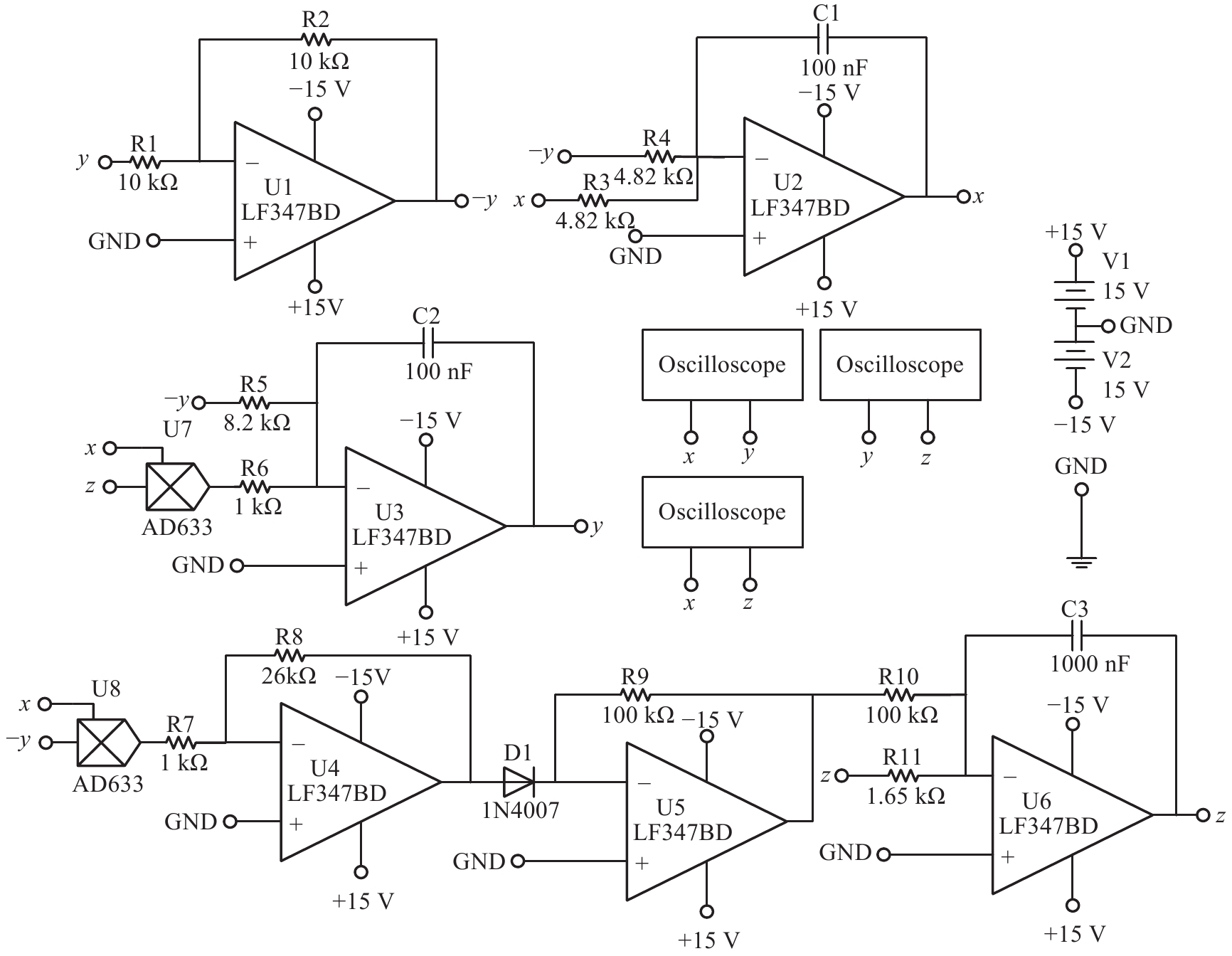

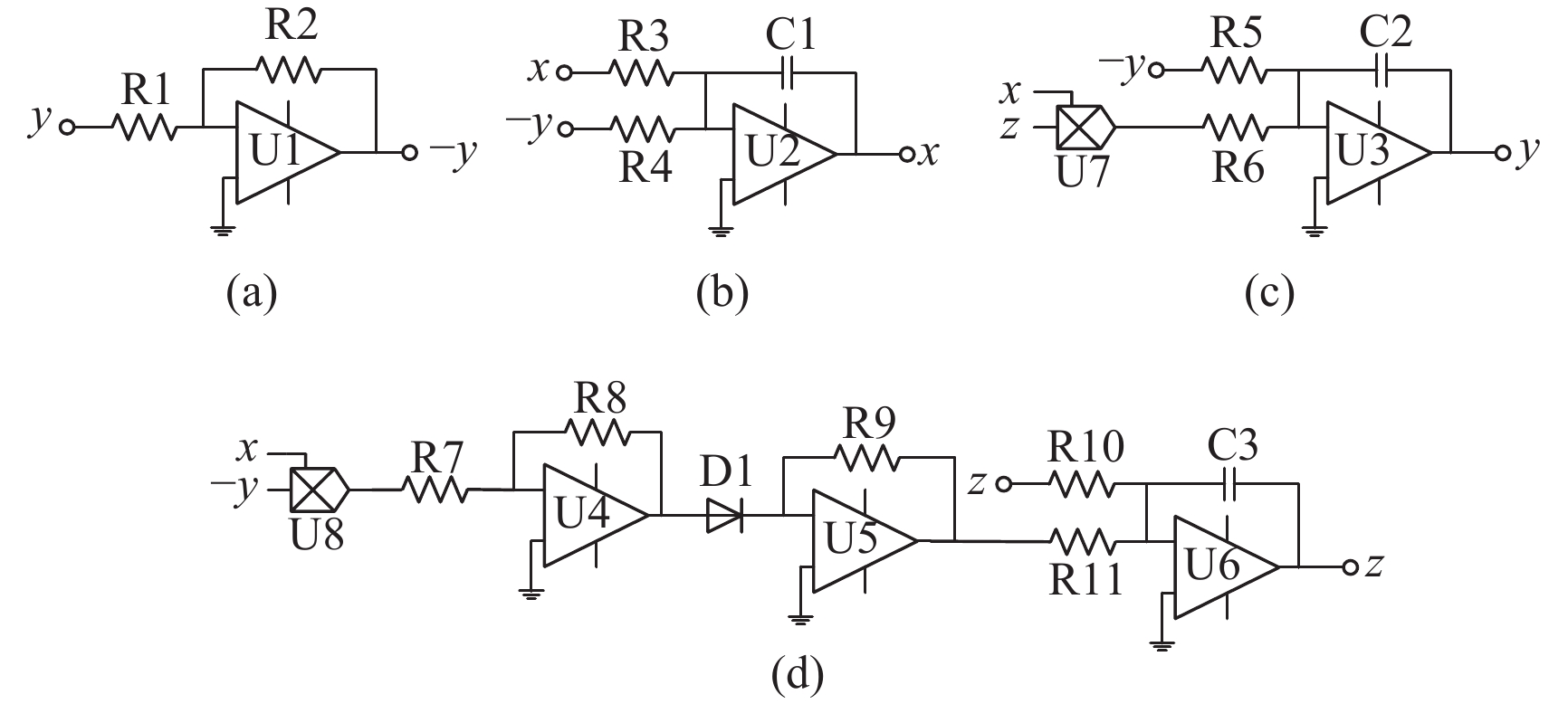

      This paper has designed a circuit corresponding to the exponential chaotic system. And the simulation results of Multisim are consistent with the theoretical analysis. This proves the effectiveness of the chaotic circuit. The circuit allows the chaotic system to be further applied to future applications.

    /
